A Comprehensive Guide to Choosing the Right V-Band Kit

A Comprehensive Guide to Choosing the Right V-Band Kit

by NGR Performance

Choosing the correct V-band clamp/kit for your system, whether it's for a custom exhaust setup, turbo configuration, or any high-performance application, can be confusing. This guide will clarify the different sizes and specifications of V-band clamps with flanges (kit), ensuring you achieve the best results for your automotive needs.

What is a V-Band Clamp?

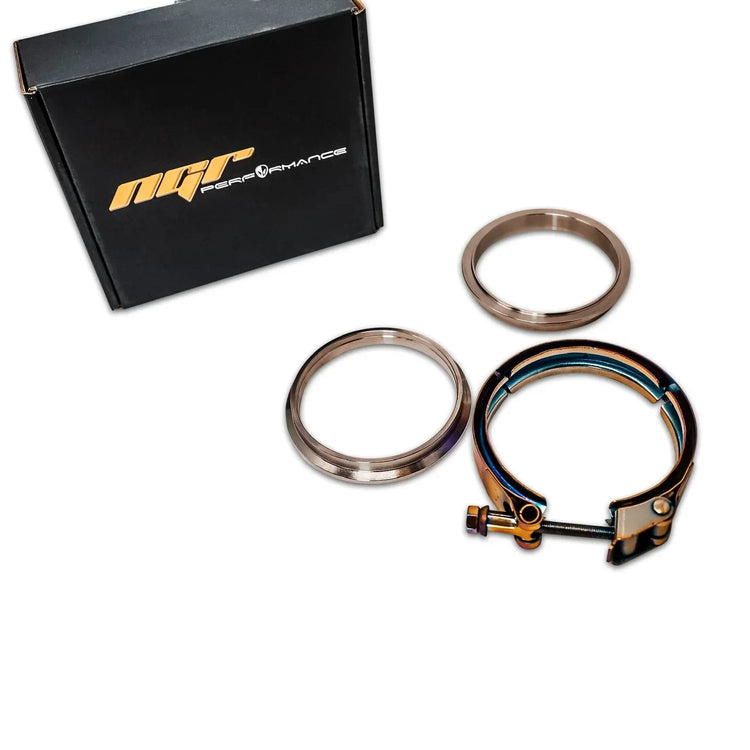

V-band clamps are essential components in the automotive industry, providing a tight, leak-free seal for turbo systems and other high-performance applications. V-band clamps typically come with matching flanges that are welded to the piping.

Sizes and Applications

V-band clamps and flanges come in various sizes. Here's how to measure and determine the correct size for your application:

How to Measure:

  • Measure the Outer Diameter of the Piping: Use a tape measure to measure the outer diameter (OD) of the exhaust piping where the V-band flange will be welded. For example, if your exhaust piping has an outer diameter of 3 inches, you will need a 3-inch V-band flange or order the 3in V-band kit.
  • Match with V-Band Clamp and Flanges: Choose a V-band clamp and flange set that matches the outer diameter of your piping. The flange will be welded onto the piping, ensuring a perfect fit for the V-band clamp.
  • Here are the common sizes and how to measure them:

    • 3 Inch V-Band Clamps:

    • Measurement: Measure the outer diameter of the exhaust piping to ensure it is 3 inches.
    • Use: Suitable for a variety of applications including mid-sized turbo systems and custom exhaust setups.

    4 Inch V-Band Clamps:

    • Measurement: Measure the outer diameter of the exhaust piping to ensure it is 4 inches.
    • Use: Ideal for larger turbo systems and high-performance applications requiring a tight seal.

    5 Inch V-Band Clamps:

    • Measurement: Measure the outer diameter of the exhaust piping to ensure it is 5 inches.
    • Use: Perfect for heavy-duty systems, industrial vehicles, and high-powered applications.

    Material and Assembly

    The material and assembly of V-band clamps significantly influence their performance and durability:

    • Stainless Steel Clamps: Known for excellent corrosion and heat resistance, making them highly durable.
    • Aluminum Clamps: Lighter but with lower corrosion and heat resistance, suitable for less demanding applications.

    Performance and Durability

    Performance and durability vary with each size:

    • 3 Inch Clamps: Ideal for general street use, providing reliable performance.
    • 4 Inch Clamps: Suitable for moderate racing conditions, offering robust performance.
    • 5 Inch Clamps: Designed for heavy-duty applications, ensuring durability under extreme conditions.

    Factors to Consider When Choosing a V-Band Clamp

  • Load Capacity and Pressure Handling: Ensure the clamp can handle the expected load and pressure of your system.
  • System Compatibility: Choose a clamp compatible with your specific setup.
  • Ease of Installation and Serviceability: Select a clamp that is easy to install and maintain.

    •

    Installation Procedure

  • Prepare Tools:Ensure all necessary tools (wrenches, torque wrenches, rubber mallets, etc.) are accessible.
  • Clean Surfaces: Remove dust and dirt from the flanges and piping.
  • Weld Flanges: Weld the V-band flanges onto the exhaust piping, ensuring proper alignment.
  • Install Clamp: Slide the over the flanges, ensuring it is centered around the joint.
  • Initial Tightening: Use a wrench to tighten the clamp steadily.
  • Final Tightening: Use a torque wrench to achieve the final tightness.
  • Check for Leaks: Test for any leaks and re-tighten the clamps if necessary.

    •



    Maintenance Tips

    • Regular Inspections: Check your V-band clamps (3", 4", and 5") for damage or corrosion. Re-tighten as needed.
    • Clean Regularly: Wipe the clamp and surrounding areas with a damp cloth.
    • Avoid Harsh Chemicals:Do not use abrasive or corrosive chemicals. Apply a thin protective coating to the clamping surface.
    • Check Alignment: Ensure the flanges are aligned correctly. Re-tighten if there are any leaks.

    By following this guide, you can select the right V-band clamp for your application, ensuring easy installation and proper maintenance for optimal performance and durability.

    by NGR Performance
