V-bands have revolutionized the way connections are made in numerous industries, presenting a secure and reliable alternative to conventional sealing strategies. However, an essential component that is often disregarded is selecting the right V-band size for the job. In this comprehensive guide, we are going to inform you of everything you want to know before deciding the right V-band size to ensure a leak-proof and tight connection.

What are V-band clamp kits?

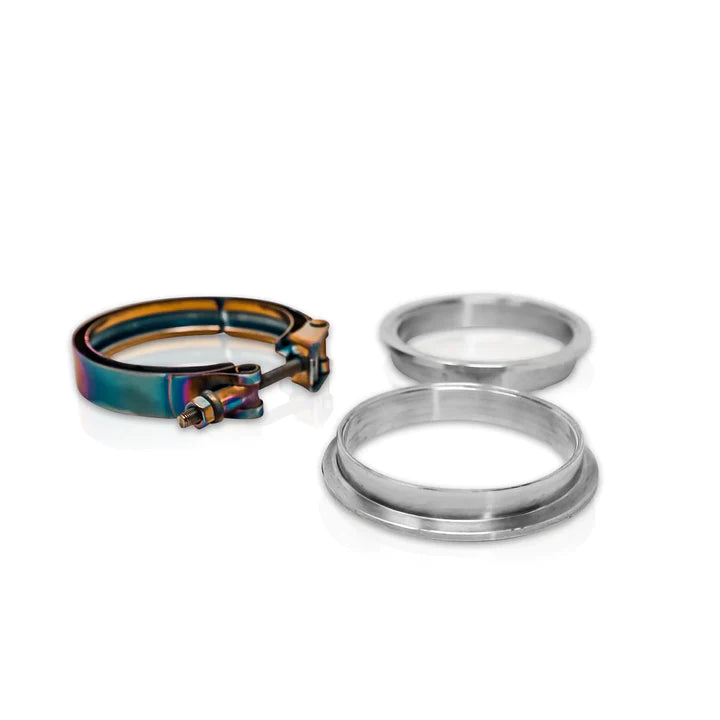

The V-band clamp kit consist of a male and female flange and a clamp that connects them to create a leak-proof seal. Unlike screw connections, V-band clamps provide versatility and smooth structure, making them best for applications including automotive exhausts and industrial pipes, etc.

The significance of the proper size:

Choosing the right V-band clamp is crucial. The wrong size band can purpose leaks, inefficiencies, or even damaging harm. Whether the application involves exhaust piping connections, wastegates, etc, it is important to measure correctly. Measure the outer diameter of your piping, if for example a 3in exhaust pipe, make sure you measure 3in outer diameter not inner diameter. Then you can select the proper v-band flange size. If 3in outer diameter, then you will need a 3in v-band kit. The flange will be 3in inner diameter so that your exhaust piping can fit. The v band clamp is then clamped to the flange to ensure a leak free seal.

Sizing Factors:

There are several factors not to forget while figuring out the suitable V-band size.

  • Pipe diameter: The diameter of the connecting pipes is the maximum essential component in selecting the scale of the clamp. Accurate dimension is crucial to make certain proper match and seal.
  •  Flange Design: Different flange designs might also require precise clamp sizes to ensure a steady connection. It may be very vital to match the clip to the complete collar for the most reliable performance.
  •  Application Requirements: Consider running situations consisting of temperature, strain, and vibration to select and take care that meets your application purposes without compromising safety and overall performance.

Common Mistakes to Avoid:

Avoid these common mistakes when choosing your V-band clamp size

  •  Guess or estimate the diameter of the pipe without simply measuring it.
  •  Provided that all V-Band clamps are interchangeable.

Advantages of selecting the proper size:

Choosing the proper size of a V-band clamp gives several benefits:

  •  Leak prevention: provides a leak-free secure seal.
  •  Ease of use: Using v-bands make it easier to disassemble when needed or assemble.
  •  Longevity: Extends the life of parts and reduces the threat of untimely failure or damage.
